Advantage
1. our 100% insertion loss less than 0.3dB( International Standard less than 0.5dB)
2. Return loss: 55dB
3. Using corning fiber
4. High temperature cycle test 24hours( -40-85centigrade) quality is stable working in poor condition.
5. Imported Brand matching gel(FIS
Description

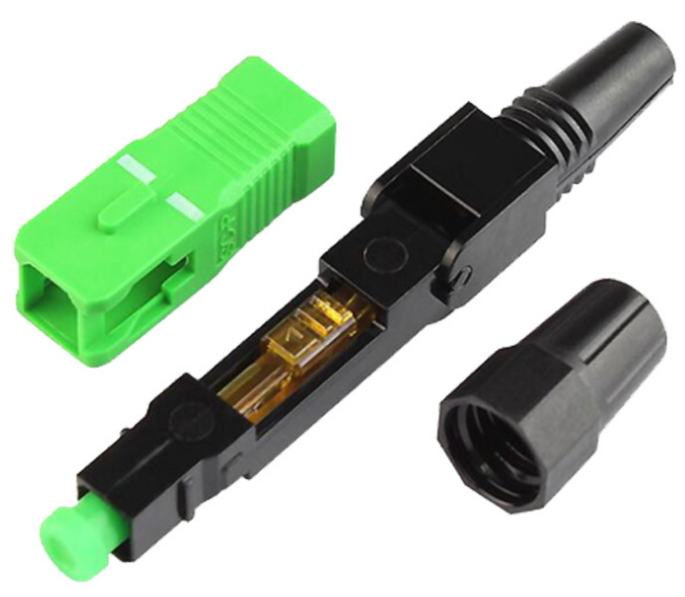

1. Twin end-face of pre embedded fiber is polised in the factory..
2. Fiber optics is aligned in V-groove through the ceramic ferrule.

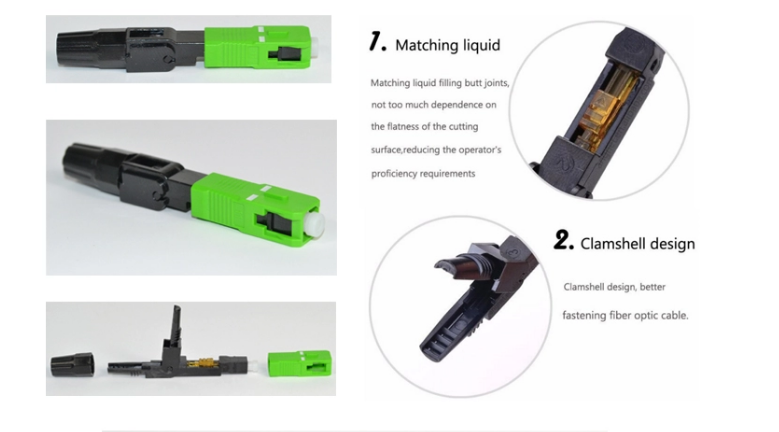

3. Side cover design provide complete preservation of the matching liquid.
4. Ceramic ferrule with pre-embedded fiber is polished to APC.
5. Length of the FTTH cable is controllable

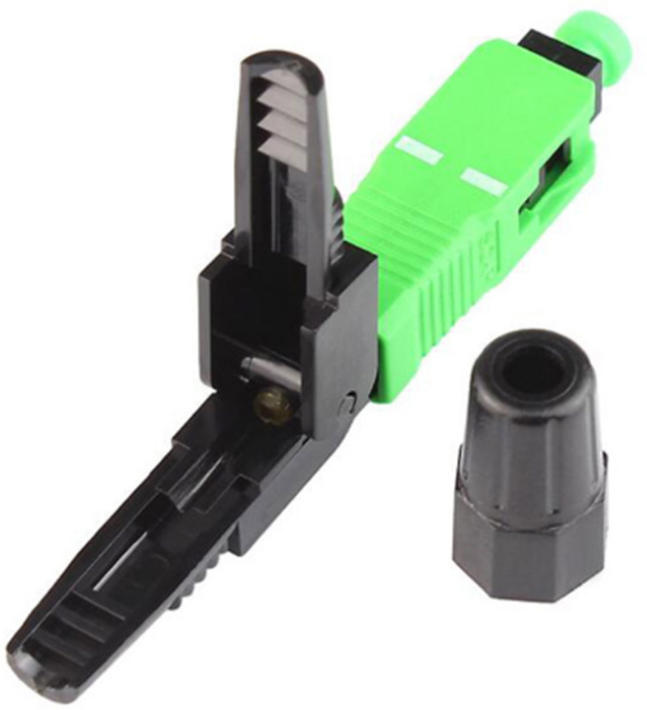

6. Simple tooling, easy operation, portable style and reusable design.
7.Connector size: 49.5*7*6mm or produced as per client's request.
Technical specification
Item | Parameter |
Cable Scope | 3.0 x 2.0 mm Bow-type Drop Cable |
Fiber Diameter | 125μm ( 652 & 657 ) |
Coating Diameter | 250μm |
Mode | SM |
Operation Time | about 15s(exclude fiber presetting) |
Insertion Loss | ≤ 0.25dB(1310nm & 1550nm) |
Return Loss | ≤ -45dB |
Success Rate | >98% |
Reusable Times | >10 times |
Tensile Strength | >5 N |
Tighten Strength of Coating | >10 N |
Temperature | -40~+85°C |
On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
Mechanical Durability(500 times) | IL ≤ 0.3dB |
Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
