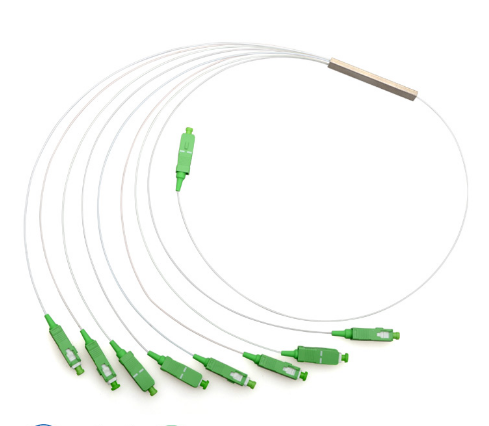

1*N PLC Optic Splitter Specification
Operating Wavelength(μm): 1260~1650nm
Port Configuration:1*2, 1*4, 1*8,1*16,1*32
Insertion Loss(dB): 3.6, 7.5,10.2,13.5,16.9
Loss Uniformity(dB): 0.4, 0.6,0.8,1.2,1.5
Polarization Dependent Loss(dB):0.2,0.2,0.2,0.25,0.3
Wavelength Dependent Loss(dB):0.3,0.3,0.3,0.5,0.5
Temperature Dependent Loss(-40-85)(dB): 0.4,0.4,0.4,0.5,0.5
Return Loss(dB): 55/50
Operating Temperature(C):-40``+85
Directivity(dB):≥55
Storage Temperature(C):-40~+85
