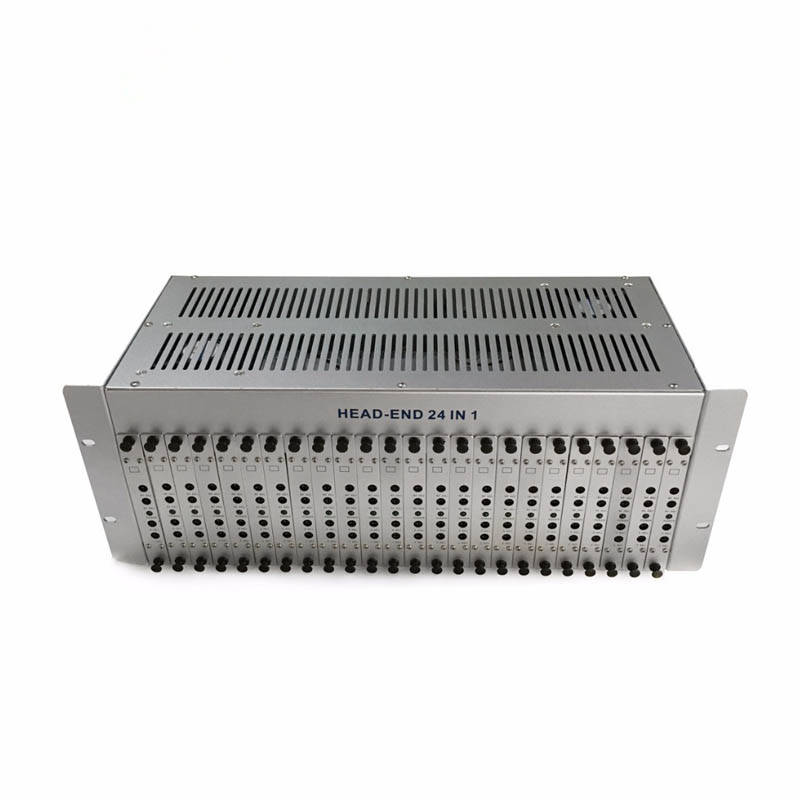

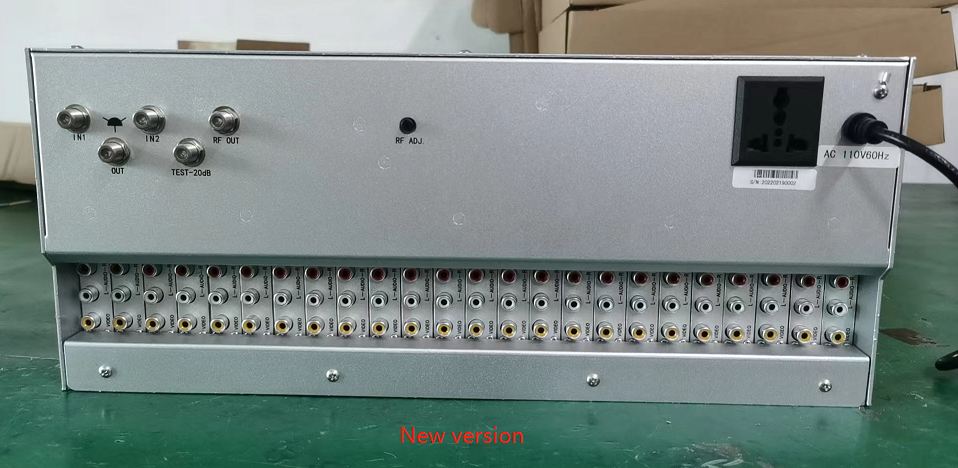

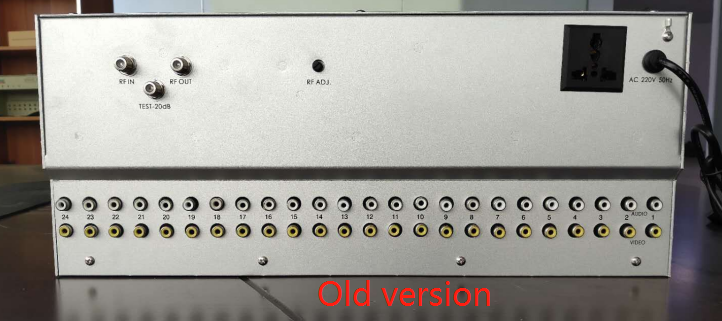

24 way catv analog modulator 4 rack
Category : Modulator
Hits : 123
Brief :

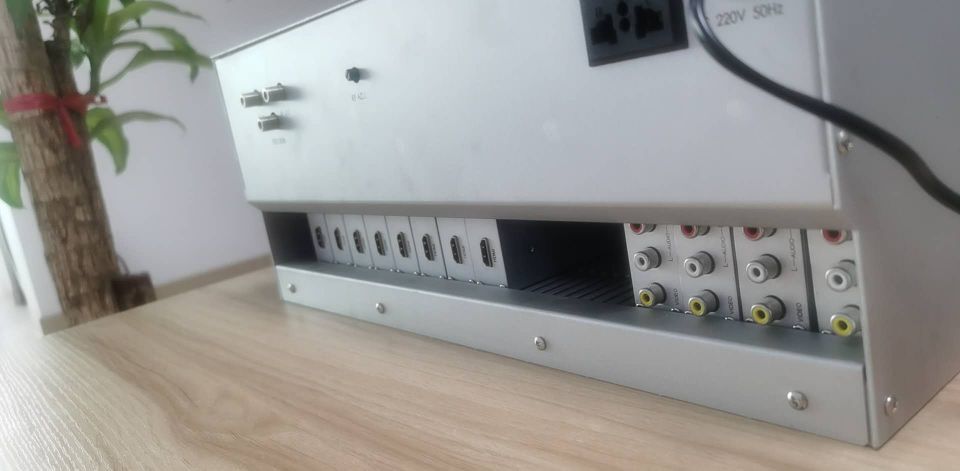

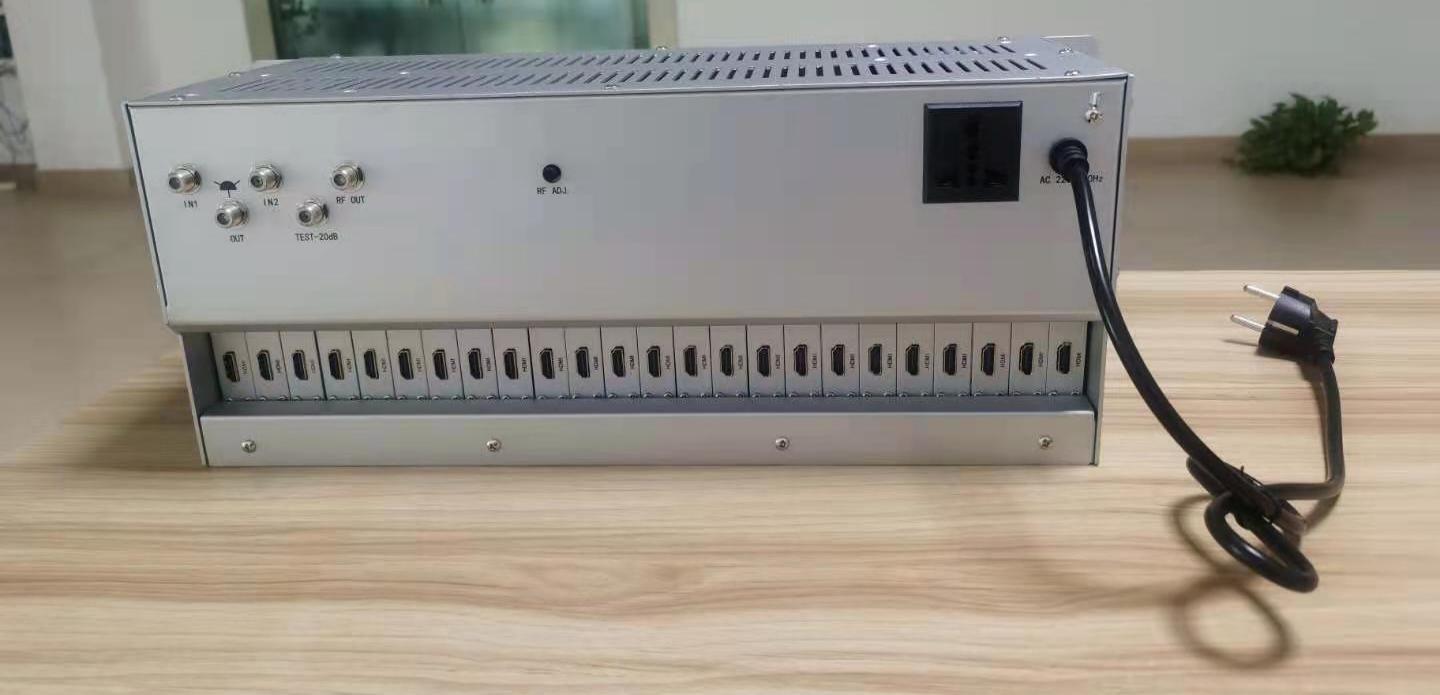

RCA or HDMI input Optional

  • Description
  • Inquiry

Features

This 24 channels module type modulator is low cost and high stability, specially designed for MATV or SMATV system. Professional design with simple installation. It is easily operated or maintained by users. 1. 1 set can install 24 channels. Adjacent channel workable. 2. Individual function keys for each channel, simple operation. 3. High efficiency SMPS enable stable performance. 4. All the figures already pre-set in the factory. No further adjustment to the modulator in case of necessary. 5. Easy setup,Internal fans for cooling modulators 6. Only one RF output. No need combiner 7. Precise frequency control with PLL circuitry 8. Also available in NTSC,all PAL configuration 9. 19” rack mountable.

Specifications

Frequency Range 47860MHz (Any one channel)

Output Level ≥105dBμV

Output Level Adjustment Range 0-20dB (Variable)

Video to Audio Carrier -10dB-30dB

adjustable Output Impedance 75Ω

Spurious Output Suppression ≥60dB

Frequency Accuracy ≤±5KHz (VHF) , ≤±10KHz (UHF)

Video Output Reflection ≥12dB (VHF)≥10dB (UHF)

Video Input Level 1.0Vp-p (87.5% Modulation)

Video Input Impedance 75Ω

Differential Gain ≤5% (87.5% Modulation)

Differential Phase ≤5°(87.5% Modulation)

C/L Delay ≤45 ns

Flatness ±1dB

Video Modulator Depth 090%

(Variable) Video S/N ≥55dB

Audio Input Level 1Vp-p (±50KHz)

Audio Input Impedance 600Ω

Audio S/N ≥57dB

Audio Pre-weighted 50μs

Power Supply AC 110V/220V±10% 50Hz±2Hz50W

Working Temperature 040℃

Dimensions 19 Inch 4 U housing
