1GE ONU for GPON & EPON
Overview
l 1GE ONU is designed as HGU (Home Gateway Unit) in different FTTH solutions; the carrier-class FTTH application provides data service access.
l 1GE ONU is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
l 1GE ONU adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
l 1GE ONU is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
l 1GE ONU is designed by Realtek chipset 9601D
Feature
l Supports Dual Mode (can access GPON/EPON OLT).
l Supports SFU and HGU of EPON CTC 3.0 standard
l Supports GPON G.984/G.988 standards and IEEE802.3ah.
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
l Support port mode of vlan configuration
l Support LAN IP and DHCP Server configuration
l Support TR069 Remote Configuration and maintenance
l Support Route PPPoE/DHCP/Static IP and Bridge mixed mode
l Support IPv4/IPv6 dual stack
l Support IGMPv2, IGMPv3, MLDv1, MLDv2, IGMP snooping/proxy
l Compatible with popular OLT(HW, ZTE, FiberHome...)
Specification
Technical Item | Details |
PON interface | 1 GPON/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm,Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
LAN interface | 10/100/1000Mbps auto adaptive Ethernet interfaces. 10/100/1000M Full/Half, RJ45 connector |
LED | 4 LED, For Status of POWER、LOS、PON、LAN |
Push-Button | 2, for Function of Power on/off, Reset |
Operating condition | Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
Power supply | DC 12V/1A |
Power Consumption | <3W |
Net Weight | <0.2kg |

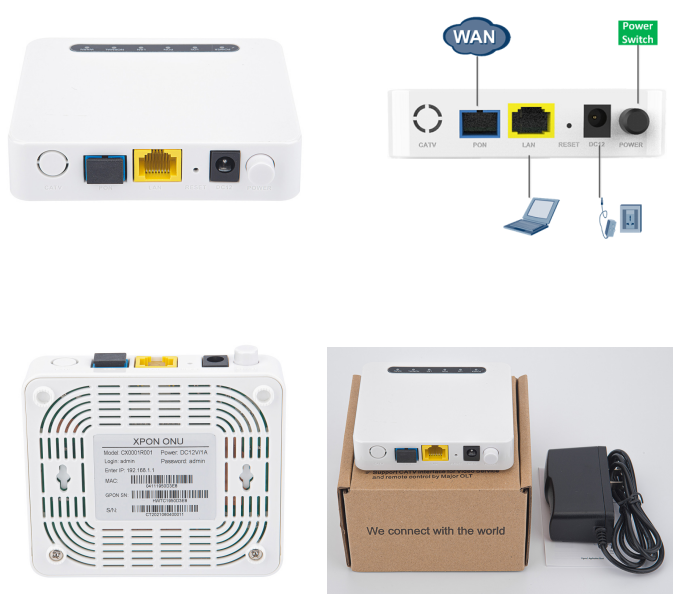

Panel lights and Introduction
Pilot | Status | Description |
POWER | On | The device is powered up. |
Off | The device is powered down. | |
LOS | Blink | The device doses not receive optical signals. |
Off | The device has received optical signal. | |
PON | On | The device has registered to the PON system. |
Blink | The device is registering the PON system. | |
Off | The device registration is incorrect. | |
LAN | On | Port is connected properly (LINK). |
Blink | Port is sending or/and receiving data (ACT). | |
Off | Port connection exception or not connected. |

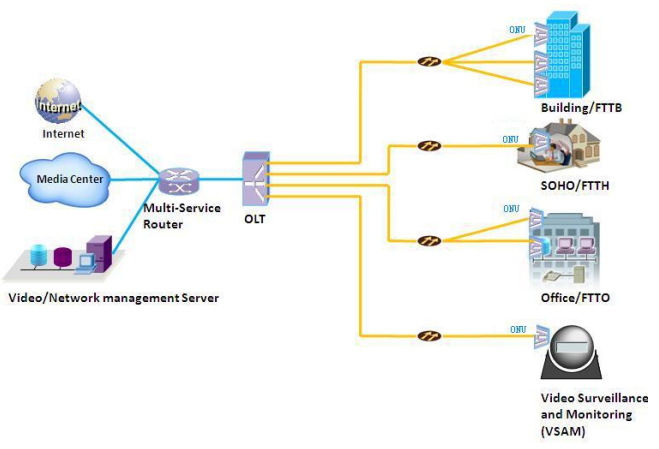

Application
l Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
l Typical Service：Broadband Internet access, IPTV, VOD(video on demand), video surveillance, CATV etc.
